1x4 Mechanical Optical Fiber Switch 760nm ST FC LC SC Non Latching

  • 1
  • 2

Brand Name : GEZHI or OEM

Model Number : GZ-1x4-760

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs per month

Delivery Time : 2-7 work days

Packaging Details : 2pcs in a foam with plastic Box

Product Name : 1x4 Optical Switche

Control Type : Non-Latching/Latching

Wavelength : 760nm/1550nm

Return Loss : 50dB

Connector : FC/APC ST or customized

Operating temperature : -20~70℃

Voltage : 3V or 5V

Contact Now

1x4 Optical Switches

The Gezhi' s 1x4 fiber optic switch connects optical channels by redirecting an in- coming optical signal into a selected output fiber. This is achieved by using a patent pending opto-mechanical configuration activated via an electrical control signal.

Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors, and the new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. Electronic driver is available for this series of switches.

Features

Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions
Epoxy-Free Optical Path
High Reliability

Applications

Channel Blocking

Configurable Add/Drop
System Monitoring
Instrumentation

Specification

Parameters Specifications Unit
Operating Wavelength 1260~1620(SM) nm
Insertion Loss ≤1.0 dB
Wavelength Dependent Loss ≤0.25 dB
Polarization Dependent Loss ≤0.05 dB
Temperature Dependent Loss ≤0.20 dB
Return Loss SM≥50 dB
Cross Talk SM≥55 dB
Switch Time ≤8 ms
Repeatability ≤±0.02 dB
Durability ≥107 times
Operating Voltage 3 or 5 V
Switch Type Non-Latching/Latching
Operating Temperature －20~＋70 ℃
Storage Temperature －40~＋85 ℃
Optical Power ≤500 mW
Dimension 27.0L×12.5W×8.4H mm

Pins

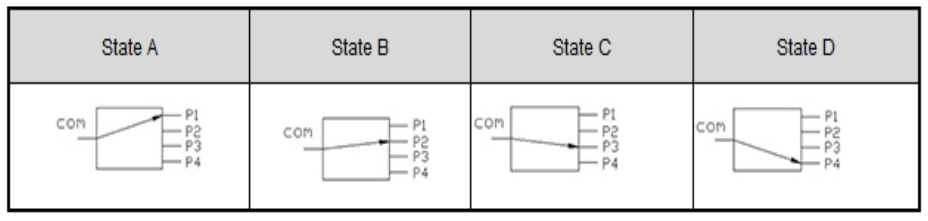

1x4 optical switch Optical Route

1x4 Mechanical Optical Fiber Switch 760nm ST FC LC SC Non Latching

1x4 Optical Switch Order Information


GZ-1x4-760nm
Order Information

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non- Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others
