1x8 MEMS Mechanical Optical Switch 1310nm 1550nm For OADM System

Name: 1x8 MEMS Mechanical Optical Switch 1310nm 1550nm For OADM System
Brand: GEZHI or OEM
Price: 1 USD

Wholesale 1x8 MEMS Mechanical Optical Switch 1310nm 1550nm For OADM System from china suppliers

Brand Name : GEZHI or OEM

Model Number : GZ-1x8-1550

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs per month

Delivery Time : 2-7 work days

Packaging Details : 2pcs in a foam with plastic Box

Product Name : 1x8 Optical Switche

Control Type : Non-Latching/Latching

Wavelength : 1310/1550/850

Return Loss : ≥ 50dB

Warranty Time : 1 year

Operating temperature : -20~70℃

Voltage : 3V or 5V

Contact Now

1x8 Optical Switches

The 1x8 mechanical optical switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.

Features

Fail-Safe Latching

Unmatched Low Cost
Low Optical Distortions

Epoxy-Free Optical Path

High Reliability

Applications

Channel Blocking

Configurable Add/Drop

System Monitoring

Instrumentation

Specification

Parameters	Specifications	Unit
Operating Wavelength	1260~1620(SM)	nm
Insertion Loss	≤1.0	dB
Wavelength Dependent Loss	≤0.25	dB
Polarization Dependent Loss	≤0.05	dB
Temperature Dependent Loss	≤0.20	dB
Return Loss	SM≥50	dB
Cross Talk	SM≥55	dB
Switch Time	≤8	ms
Repeatability	≤±0.02	dB
Durability	≥10⁷	times
Operating Voltage	3 or 5	V
Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70	℃
Storage Temperature	－40~＋85	℃
Optical Power	≤500	mW
Dimension	27.0L×12.5W×8.4H	mm

Pins

1x8 optical switch Optical Route

1x8 MEMS Mechanical Optical Switch 1310nm 1550nm For OADM System

1x8 Optical Switch Order Information

GZ-1x8-1550nm
Order Information

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others

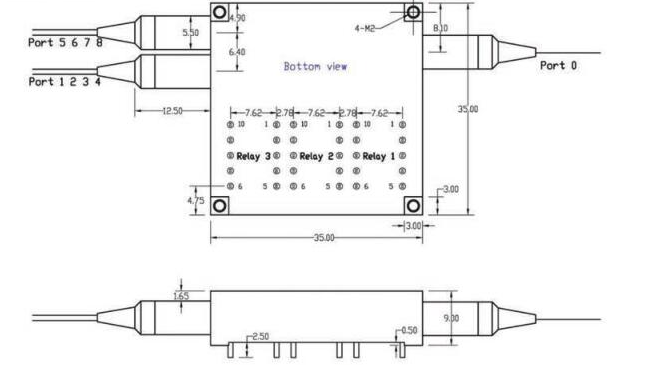

Mechanical Drawing

1x8 MEMS Mechanical Optical Switch 1310nm 1550nm For OADM System
