Single Fiber 1550nm 1x3 CWDM Passive Multiplexer

Name: Single Fiber 1550nm 1x3 CWDM Passive Multiplexer
Brand: GEZHI or OEM
Price: 1 USD

Wholesale Single Fiber 1550nm 1x3 CWDM Passive Multiplexer from china suppliers

Brand Name : GEZHI or OEM

Model Number : 1x3-CWDM

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : 1x3 CWDM

Wavelength : 1550,1610nm + 1310&1490nm

Channel Spacing : 20nm

Line Type : Single Fiber

Connector : SC/APC

Application : CATV

Contact Now

1x3 CWDM Passive Multiplexer Module 1610, 1550nm+1310&1490nm

GEZHI 1x3 CWDM Passive Multiplexer is packed by ABS box which with SC/APC connector and . The wavelenght of 1x3 Channel CWDM Passive Multiplexer is 1610nm, 1550nm and 1310/1490nm in one port for GEPON System .

Features

High Quality

Low insertion Loss

Low Cost

High Reliable

ITU CWDM Grid

Applications

CATV Network

WDM network
Access Network

Telecommunication

Fiber optical amplifier

Specification

Parameter		1x3 CWDM Module
Center Wavelength (nm)		ITU, ITU+1
Passband (nm)		ITU±7.5
Operating Wavelength (nm)		1610nm ,1550nm +1310&1490nm
Channel Space (nm)		20
Fiber Type		SMF-28e or customer specified
IL (dB)		<1.3dB
Isolation(dB)	Adjacent Channel	30
	Non-Adjacent Channel	45
PDL (dB)		0.2
PMD (ps)		0.1
Return Loss (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-20~+70
Storage Temperature (℃)		-40～85
Fiber Length		1meter with 900um Cable
Connector		SC/APC
BOX Package (mm)		ABS box 100x80x10mm

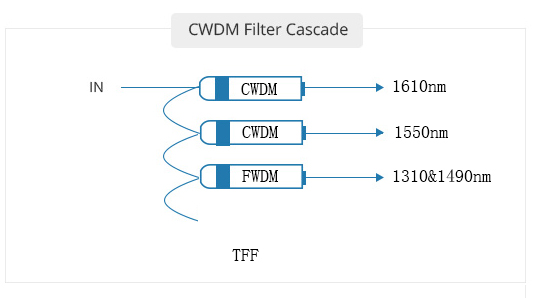

1x3 CWDM Passive Multiplexer filter cascading

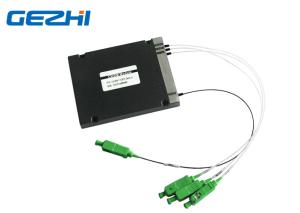

1x3 CWDM, ABS box:100x80x10mm, 900um loose tube, 0.5meter, SC/APC

Single Fiber 1550nm 1x3 CWDM Passive Multiplexer

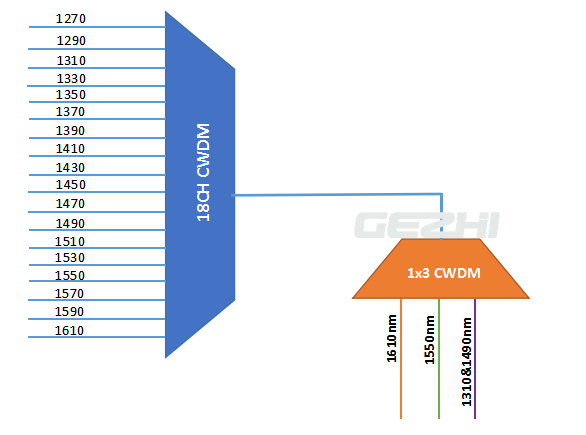

1x3 CWDM application

Single Fiber 1550nm 1x3 CWDM Passive Multiplexer

Product Tags:

1x3 Passive CWDM

1550nm Coarse WDM

1x3 CWDM Module
