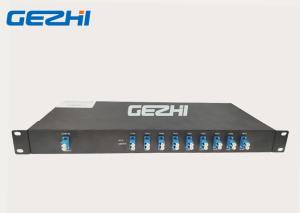

LC UPC Two Fiber 1U 1x8 1310nm mux demux 8CH Coarse WDM

Brand Name : GEZHI or OEM

Model Number : 1x8CH-MD-R

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : 1x8CH CWDM

Wavelength : 1470~1610+1310

Channel Number : 1x8+1310 CH

Line Type : Two fiber

Connector : LC/UPC

Application : Access Network

Contact Now

CWDM Passive Multiplexer 1x8+1310nm mux/demux Two Fiber 1U Frame

GEZHI CWDM Passive Multiplexer 1x8+1310nm mux/demux is 19" 1U frame with LC/UPC adaptor. The wavelenght of CWDM Passive Multiplexer 1x8+1310nm mux/demux is 1470 to 1610nm with 1310nm port. The CWDM Passive Multiplexer 1x8+1310nm mux/demux offers an high channel isolation WDM solution for data centers and Metro access applications. Its use dual fiber.

Features

High channel isolation

High Quality & Low Cost

Epoxy free optical path
Built-in Mux+Demux in one unit, working on dual network fibers
Fully compatible with all ITU-T CWDM optics

Applications

Fiber optical amplifier

Access Network

Line monitoring

Telecommunication

WDM network

Specification

Parameter CWDM Passive Multiplexer
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±7.5
Operating Wavelength (nm) 1470~1610+1310nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.8dB
Isolation(dB) Adjacent Channel 30
Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
Connector LC/UPC
BOX Package (mm) 19" 1U Rackmount

CWDM Passive Multiplexer 1x8+1310nm mux/demux​ Filter cascading

1x8+1310nm CWDM mux/demux​ , 1470~1610nm+1310nm, 19" 1U Rackmount, LC/UPC

LC UPC Two Fiber 1U 1x8 1310nm mux demux 8CH Coarse WDM

1x8+1310nm CWDM mux/demux​ Two Fiber

LC UPC Two Fiber 1U 1x8 1310nm mux demux 8CH Coarse WDM
