1x18 Coarse Wavelength Division Multiplexer Mux/Demux Two fiber for 4-slot 19" 1U Frame
GEZHI 1x18 Coarse Wavelength Division Multiplexer Mux/Demux is built-in a 18CH Mux and 18CH Demux in one LGX cassette which insert on the 4-slot type 19" 1U rack-mount. The wavelenght of GEZHI 1x18 Coarse Wavelength Division Multiplexer Mux/Demux Two fiber is 1270nm to 1610nm. The 1x18 Coarse Wavelength Division Multiplexer Mux/Demux offers an high channel isolation WDM solution for data centers and Metro access applications. Its working on a two optical fiber with only 3.5dB link insertion loss.
Features
High Quality & Low Cost
3.5dB link insertion loss
18 channels per fiber
Epoxy free optical path
High channel isolation
Fully compatible with all ITU-T CWDM optics
Built-in Mux+Demux in one unit, working on dual network fibers
Applications
Access Network
WDM network
Line monitoring
Dark fiber networks
Telecommunication
Broadcast contribution networks
Fiber optical amplifier
Optical video networks
Event production
Specification
| Parameter | Unit | Coarse Wavelength Division Multiplexer |
| Mux | Demux |
| Channel Wavelength | nm | 1270~1610nm |
Center wavelength
Accuracy | nm | ±0.5 |
| Channel Spacing | nm | 20 |
Channel Passband
(@-0.5dB bandwidth | nm | >14 |
| Max Insertion Loss | dB | <5.5 or <3.5 with Skip | <5.5 or <3.5 with Skip |
| Channel Ripple | dB | 0.3 |
| Isolation | Adjacent | dB | >30 |
| Non-adjacent | dB | >40 |
Inertion Loss Temperature
Sensitivity | dB/℃ | <0.005 |
Wavelength Temperature
Shifting | nm/ ℃ | <0.002 |
Polarization Dependent
Loss | dB | <0.1 |
Polarization Mode
Dispersion | dB | <0.1 |
| Directivity | dB | >50 |
| Return Loss | dB | >45 |
| Maximum Power Handling | mW | 300 |
| Opterating Temperature | ℃ | -5~+75 |
| Storage Temperature | ℃ | -40~85 |
| Package dimension | mm | LGX cassette |
1x18 Coarse Wavelength Division Multiplexer Mux/Demux Filter cascading
1270~1610nm, LGX cassette, LC/UPC
1x18 Coarse Wavelength Division Multiplexer Mux/Demux Two Fiber 1270~1610nm

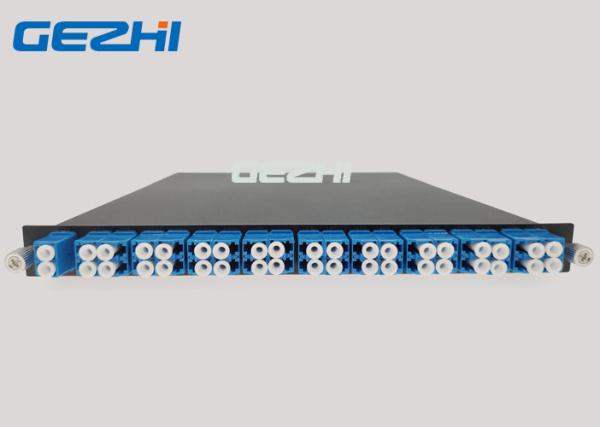

18CH CWDM Mux+Demux LGX cassette insert on 4-slot 19" 1U Rackmount
