Low Insertion Loss Epoxy-free On Optical Path MEMS 1x2 Optical Switch Device

Name: Low Insertion Loss Epoxyfree On Optical Path MEMS 1x2 Optical Switch Device
Brand: Gezhi or OEM
Price: 1 USD

Wholesale Low Insertion Loss Epoxy-free On Optical Path MEMS 1x2 Optical Switch Device from china suppliers

Brand Name : Gezhi or OEM

Model Number : Mems-1x2

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $30

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Application : 5G Optical Access Networks

Fiber Connector : LC/UPC, LC/APC, SC/UPC etc.

Switch Time : 30ms

Voltage : 60V

Port : 1x2 or 1xN

Wavelength : C-band or Customized

Warranty Time : 3 years

Contact Now

Product description

Low Insertion loss Epoxy-free on Optical Path MEMS 1x2 Optical Switch Device

GEZHI Photonics offers MEMS optical switches support wide band wavelength and are compact, fast switching, High stability and with high channel number configuration. Its widely used in MCS, OXC, IODF, OLM, OTDR or fiber sensing etc.

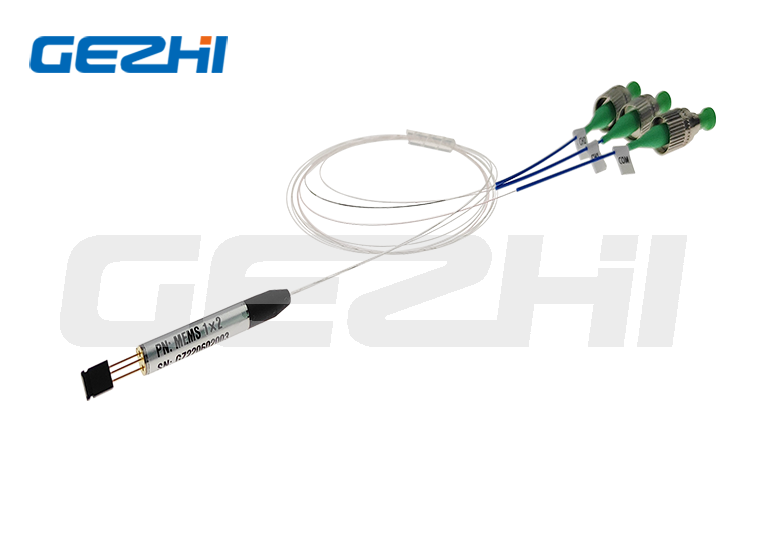

Low Insertion Loss Epoxy-free On Optical Path MEMS 1x2 Optical Switch Device

Feature

Low Insertion Loss

Fast Switching Time

Compact Size

Multiple Channels

High number of switching cycles over life

Applications

Specifications

Optical Network
Network Test System
Protection/Restoration
Transmitter and receiver protection

Parameter	Unit	1xN MEMS Optical Switch
Wavelength Range	nm	C-Band	L-Band
Operating Wavelength	nm	1530~1570	1570~1610
Insertion Loss	dB	<1.0	<1.0
Return Loss	dB	≥50
Crosstalk	dB	≥55
Polarization Dependent Loss	dB	≤0.1
WDL	dB	≤0.2
TDL	dB	≤0.2
Repeatability	dB	≤±0.1
Power Supply	V	≤60
Lifetime	times	≥109
Switch Time	ms	≤30
Optical Power	mW	≤500
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Dimension	mm	φ5.5x42
Note: 1. Within Operating temperature and all SOP. 2. Above spec. is not inlude connector, if add connector, the IL will increase 0.3dB.

Technical Paremeter

1. Single mode

Multi mode

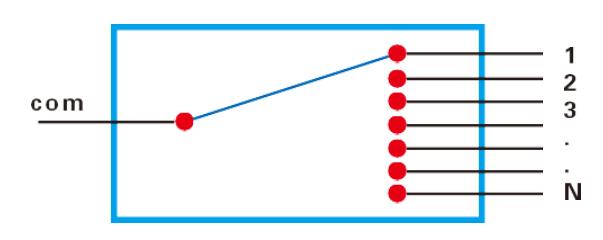

Optical Route

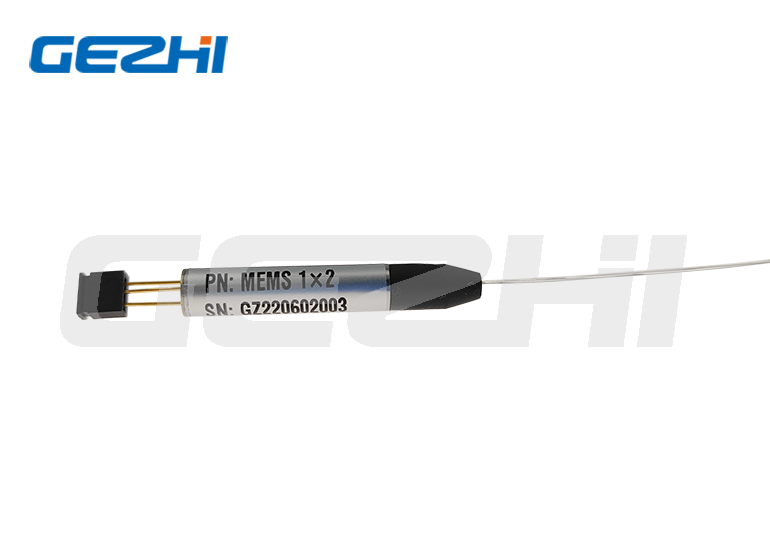

Low Insertion Loss Epoxy-free On Optical Path MEMS 1x2 Optical Switch Device

Dimension

Low Insertion Loss Epoxy-free On Optical Path MEMS 1x2 Optical Switch Device

Ordering Information
