Product Overview of DWDM Mux Demux
100GHz 4 8 16 18 Channel DWDM Mux Demux module Passive Optical Multiplexer
DWDM Mux Demux
DWDM (Dense Wavelength Division Multiplexing) is a combination of a set of optical wavelengths that can be transmitted with one fiber. This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. This is a laser technology used to increase bandwidth on existing fiber-optic backbones. It enables optical fiber networks to transmit signals of several wavelengths simultaneously.
GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available
Features of DWDM Mux Demux
Features:
•Low Insertion Loss
•High Isolation
•High Stability & Reliability
•Industrial Operating Temperature
•(-40~+80℃ available)
•Customized Package type
•Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount
Specifications of DWDM Mux Demux
| Parameter | Unit | | | Channel Spacing | nm | | | Center Wavelength | nm | | | Channel Passband | nm | 0.22 (100GHz) / 0.5 (200GHz) | | Channel Number | / | | | | | Insertion Loss | dB | | | | | Isolation @Adjacent Channel | dB | | | Isolation @Non-adjacent Channel | dB | | | Isolation @Express Port | dB | | | Polarization Dependent Loss | dB | | | Polarization Mode Dispersion | dB | | | Directivity | dB | | | Return Loss | dB | | | Power Handling | mW | <500 (High Power type available) | | Fiber Type | / | SMF-28e (Polarization Maintaining Type available) | | Operating Temperature | ℃ | -20~+75 (-40~+85 available) | | Storage Temperature | ℃ | | | Package Type | mm | ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount | | |

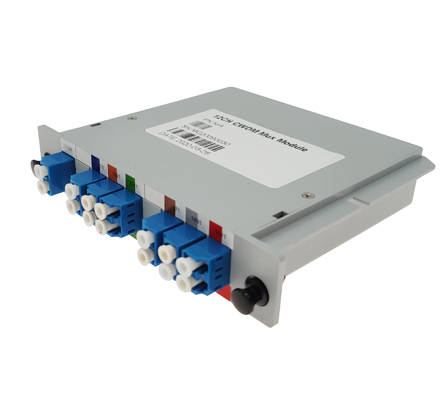

ABS Plug-in Box
LGX Chassis
Front elevation
FAQ
Q1:Can I have a sample order? What is your MOQ of DWDM Mux Demux?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of DWDM Mux Demux?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
