1*8 CWDM Single core fiber 1470~1610nm Passive Multiplexer Splitter WDM CWDM Mux Demux Module LC/UPC ST/UPC with Express

Name: 18 CWDM Single core fiber 14701610nm Passive Multiplexer Splitter WDM CWDM Mux Demux Module LCUPC STUPC with Express
Brand: GEZHI or OEM
Price: 1 USD

Wholesale 1*8 CWDM Single core fiber 1470~1610nm Passive Multiplexer Splitter WDM CWDM Mux Demux Module LC/UPC ST/UPC with Express from china suppliers

Brand Name : GEZHI or OEM

Model Number : 1*8 CWDM

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Warranty Time : 3 years

Use : WDM System

Channel Spacing : 20nm

Center Wavelength : 1270~1610nm

Fiber Connector : LC/UPC, FC/APC, SC/APC etc.

Application : Data Center

Fiber Type : SMF-28e

Channel Number : 4, 8, 16, 18 or Customized

Contact Now

Product Overview

CWDM Mux Demux

CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.

PRODUCT SPECIFICATIONS

  	  			Parameter
  			Unit
  			CWDM Mux Demux

  			Channel Spacing
  			nm
  			20nm

  			Center Wavelength
  			nm
  			1270~1610 or 1271~1611

  			Channel Passband
  			nm
  			±6.5

  			Channel Number
  			/
  			4CH
  			8CH
  			16CH

  			Insertion Loss
  			dB
  			<1.5
  			<2.5
  			<5.5 or <3.5(with skip)

  			Isolation @Adjacent Channel
  			dB
  			>30

  			Isolation @Non-adjacent Channel
  			dB
  			>40

  			Isolation @Express Port
  			dB
  			>15

  			Polarization Dependent Loss
  			dB
  			<0.2

  			Polarization Mode Dispersion
  			dB
  			<0.1

  			Directivity
  			dB
  			>50

  			Return Loss
  			dB
  			UPC >45 APC>50

  			Power Handling
  			mW
  			<500 (High Power type available)

  			Fiber Type
  			/
  			SMF-28e (Polarization Maintaining Type available)

  			Operating Temperature
  			℃
  			-20~+75 (-40~+85 available)

  			Storage Temperature
  			℃
  			-40~+85

  			Package Type
  			mm
  			ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount


FEATURES AT A GLANCE
  	  			Low Insertion Loss
  			Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount
  			Customized Package type

  			High Isolation

  			High Stability & Reliability

  			Industrial Operating Temperature(-40~+80℃  available)




FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
  A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
  A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

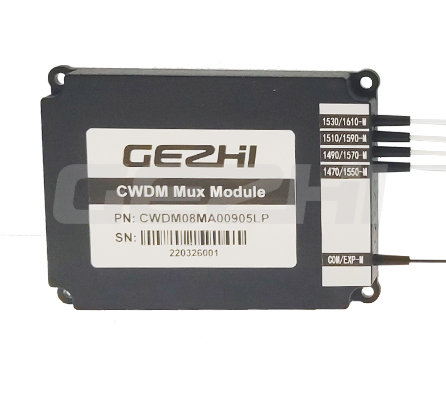

1*8 CWDM Single core fiber 1470~1610nm Passive Multiplexer Splitter WDM CWDM Mux Demux Module LC/UPC ST/UPC with Express Images
